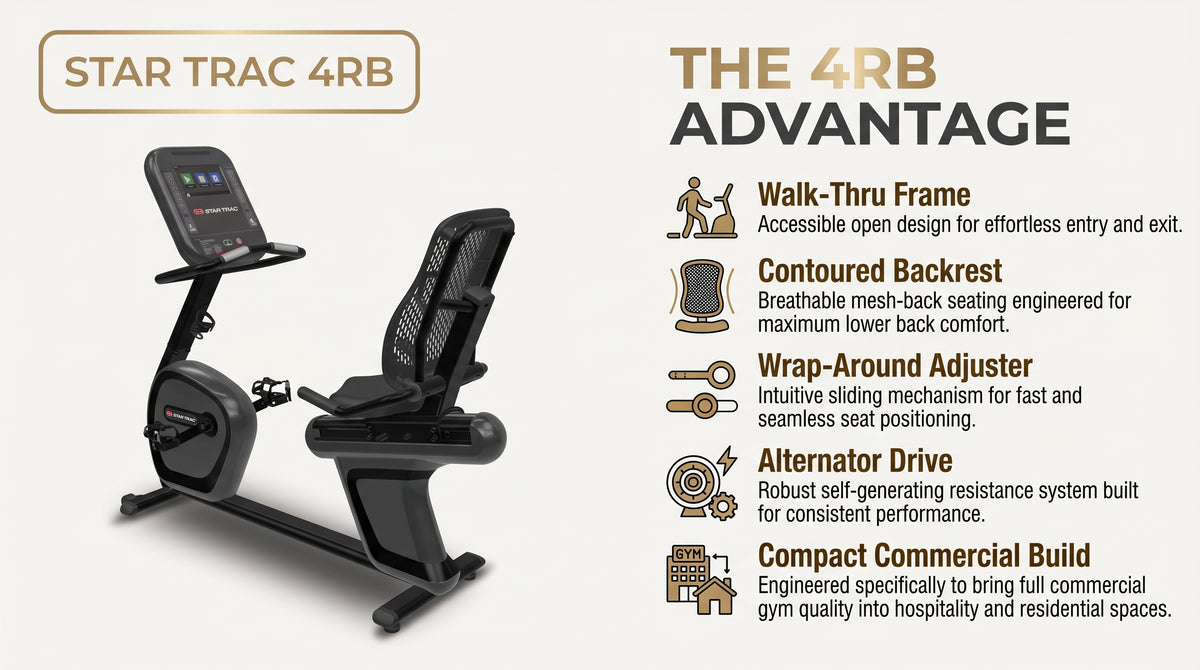

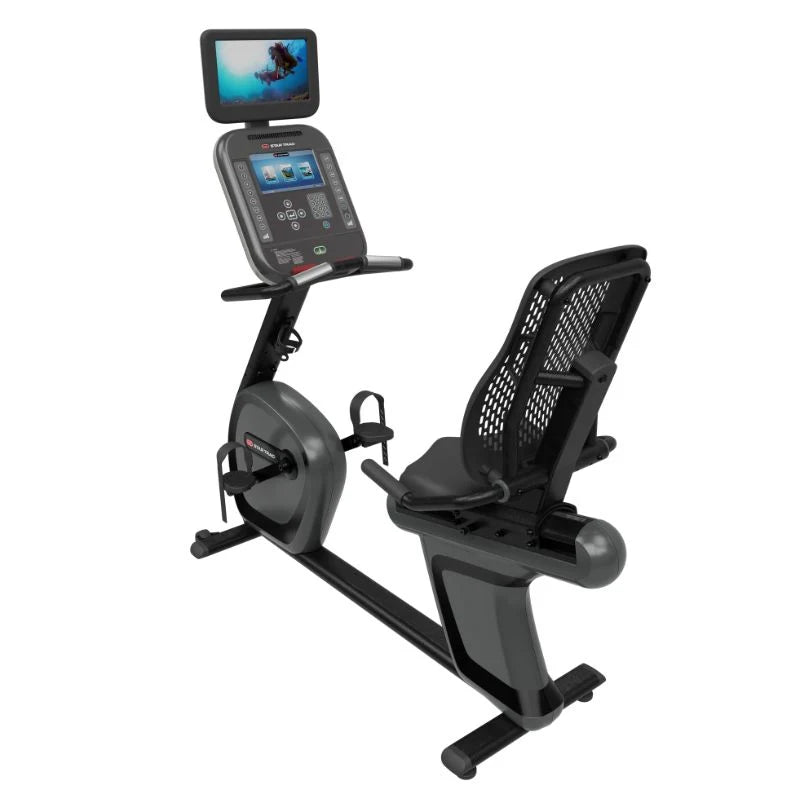

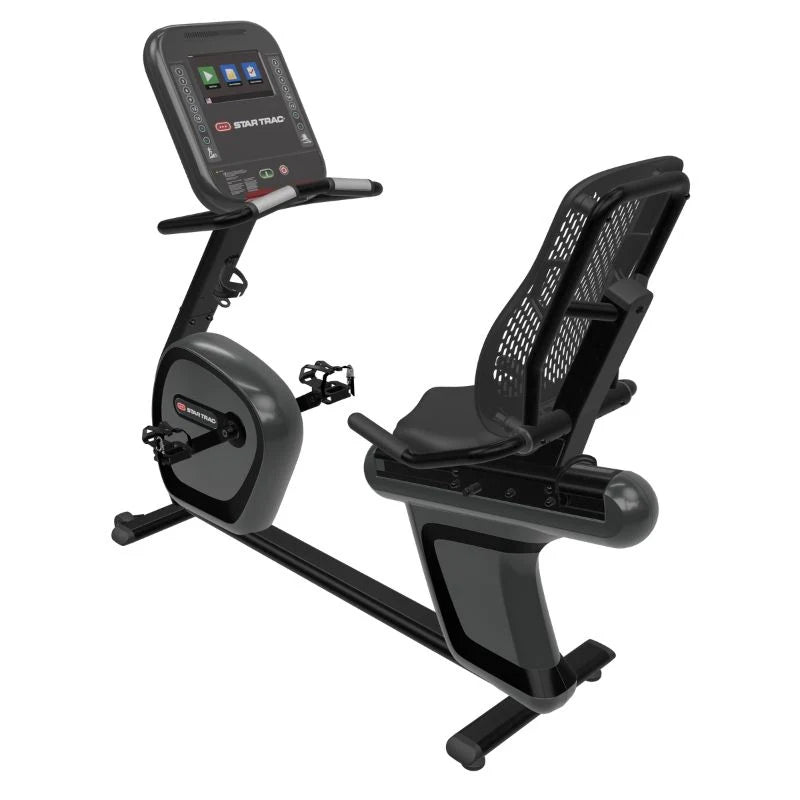

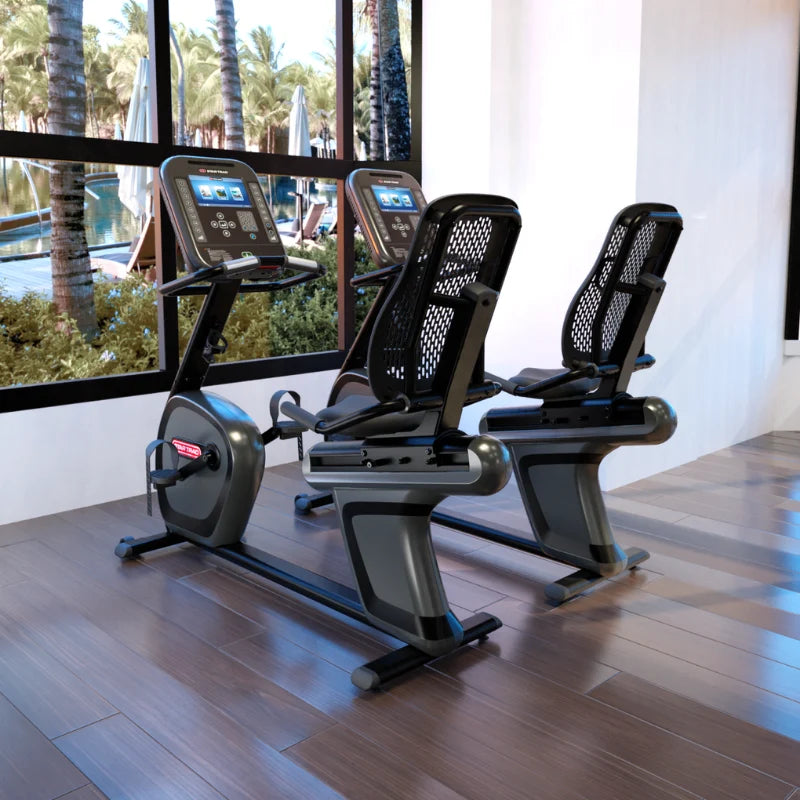

The Star Trac 4-Series Recumbent Bike is a commercial exercise bike designed for hotels, residential fitness facilities, multi-housing developments and smaller gyms. Its recumbent design provides a seated cycling position, while the walk-through frame makes getting on and off easier. The bike combines telemetry and contact heart rate monitoring, commercial-grade pedals with adjustable straps, and a wrap-around seat adjustment bar for convenient use by different users.

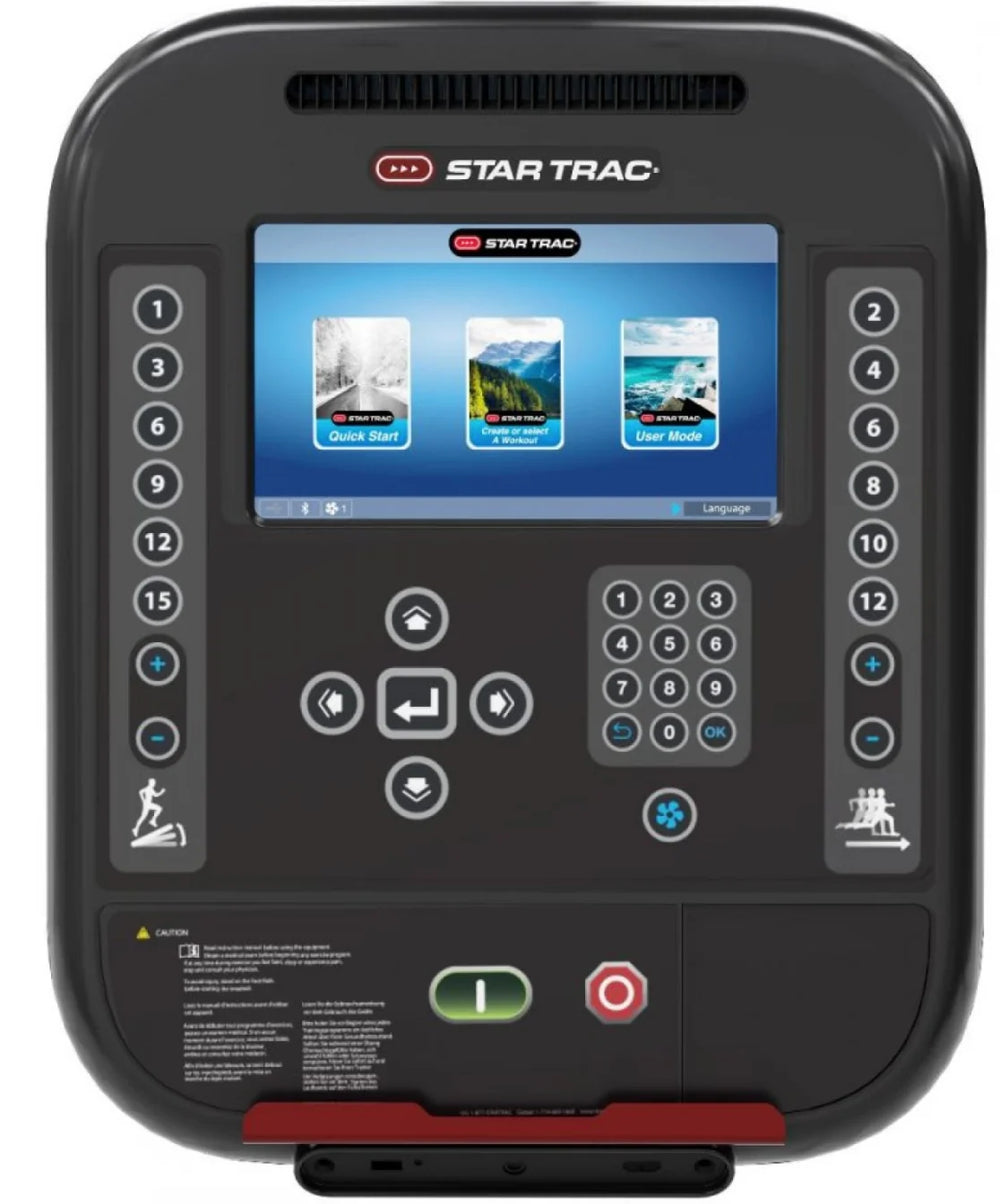

Built with a powder-coated steel frame, the bike supports users weighing up to 450 lbs (204 kg). It is available with a 10-inch full-colour LCD, 10-inch capacitive touchscreen or 15-inch OpenHub touchscreen, depending on the selected configuration. Quick-select console controls, a bottle holder, USB connectivity and compatibility with an optional Personal Viewing Screen (PVS) make it a practical option for shared fitness environments.
The bike also includes a USB port for software updates and device charging, as well as a bottle holder. It is pre-wired for an optional Personal Viewing Screen (PVS). The PVS system has a 15.6-inch HD LED display with a resolution of 1366 × 768, with tuner and connection options varying by configuration. Additional accessories may be required for certain functions.
Size & Space Requirements
The Star Trac 4-Series Recumbent Bike has the following dimensions:
-
Length: 68 inches (172 cm)
-
Width: 23 inches (59 cm)
-
Height: 54 inches (137 cm)
-
Product Weight: 186 lbs (84 kg)
-
Shipping Dimensions: 67 × 23 × 31 inches (170 × 58 × 80 cm)
-
Shipping Weight: 208 lbs (94 kg)
Power Requirements
The 10-inch full-colour LCD configuration is self-generating. The touchscreen and optional Personal Viewing Screen configurations require a 12V/5 Amp power supply. The manufacturer’s stated start-up power requirement is 20 watts.
Confirm the electrical requirements for the selected display and accessories before installation.
Care & Maintenance
Regular maintenance helps keep the bike clean and ready for use.
- Wipe the seat, pedals and frame after use.
- Clean the display with a suitable soft cloth.
- Inspect pedal straps and the seat adjustment bar for wear.
- Check the pedals, console and fittings periodically.
- Keep the area around the bike free from dust and obstructions.
- Follow the manufacturer’s maintenance instructions.
Safety & Usage Tips
- Place the bike on a stable, level surface before use.
- Adjust the seat to a suitable position before starting.
- Secure your feet with the adjustable pedal straps.
- Begin at a comfortable pace and increase intensity gradually.
- Maintain a stable seated position throughout the workout.
- Keep the walk-through area clear when getting on or off.
- Ensure any required power supply is correctly installed for the selected touchscreen or PVS configuration.
- Beginners should start with moderate exercise intensity until familiar with the equipment.
