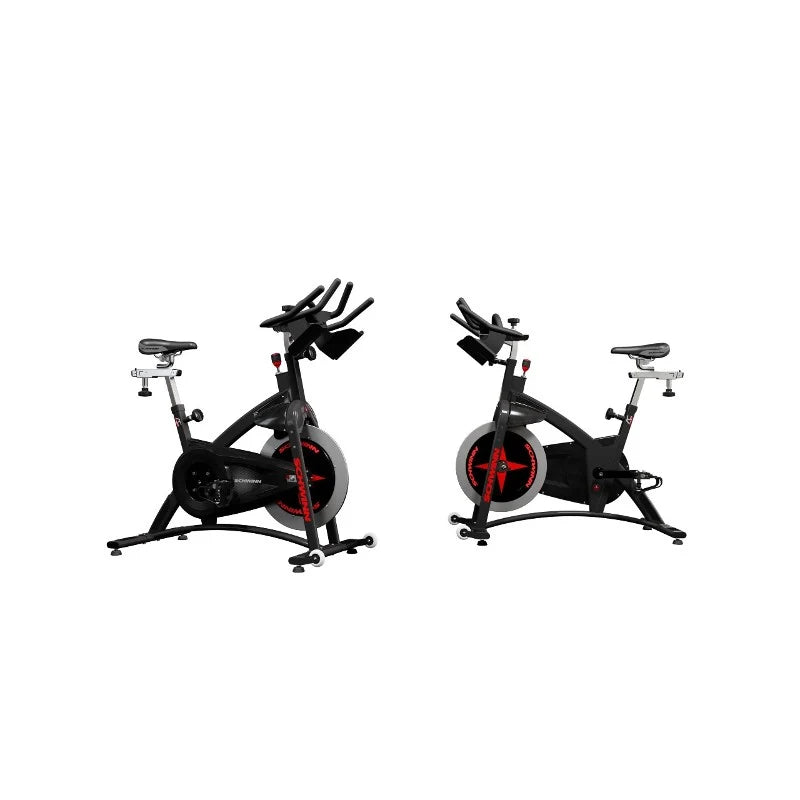

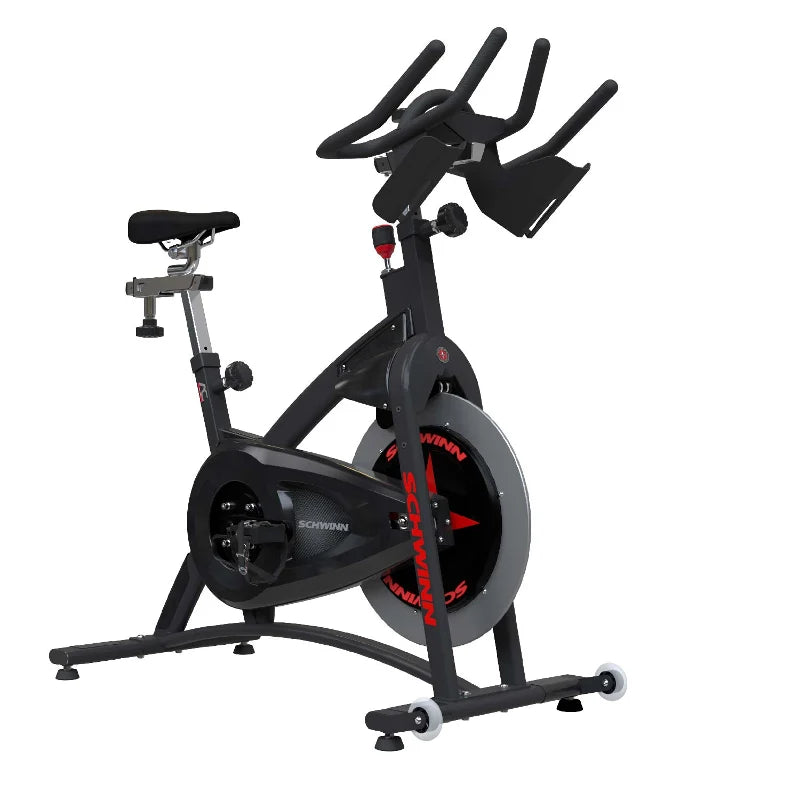

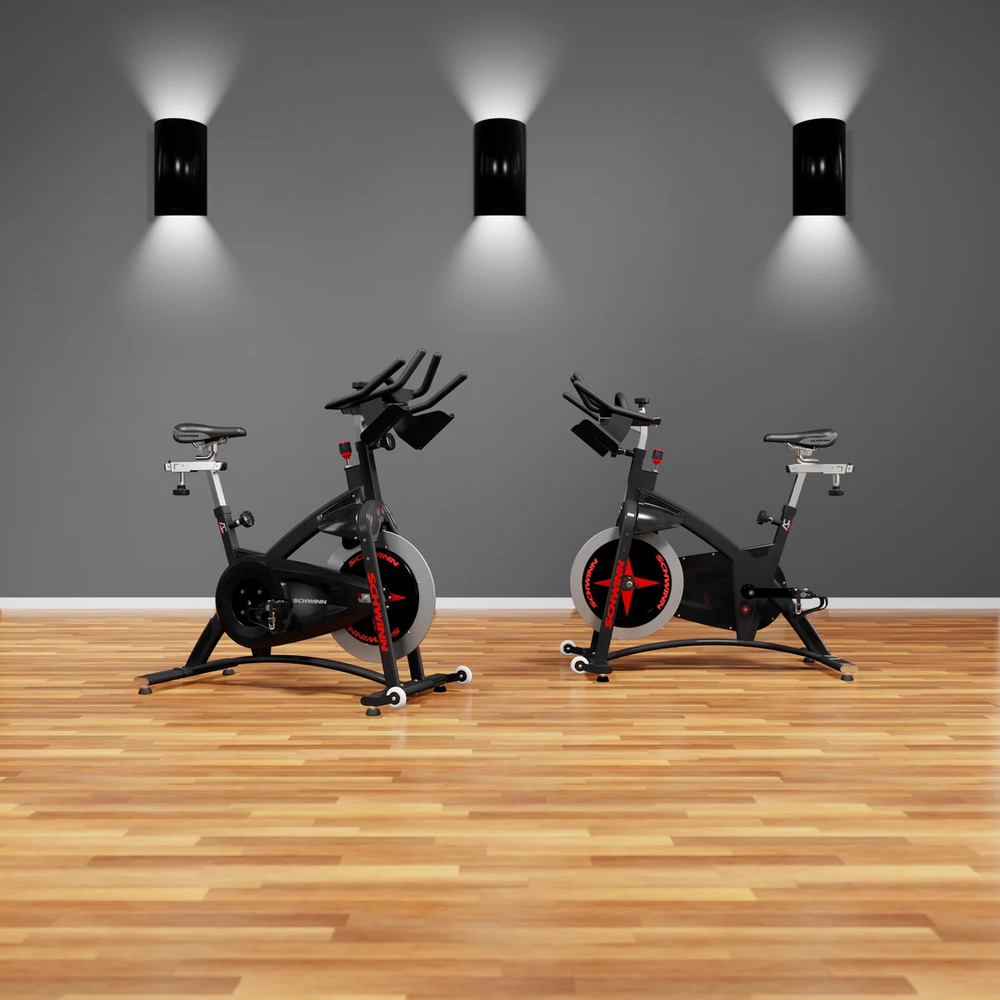

The Schwinn AC Sport Indoor Cycle (Carbon Blue Belt) is a commercial indoor cycling bike engineered for boutique cycling studios, athletic performance centers, and fitness clubs seeking an authentic road-cycling feel with low operational upkeep. Designed around rider, instructor, and club owner feedback, the AC Sport elevates rider comfort and mechanical longevity with customizable seat sliders, multi-position handlebars, and integrated stretch pads.
At the heart of the cycle is the Carbon Blue toothed belt-drive system paired with magnetic resistance braking, delivering a whisper-quiet, frictionless ride with zero regular drivetrain maintenance. Built on an e-coated and powder-coated steel chassis, the bike incorporates the Schwinn Fit System with micro-adjustments for riders ranging from 4 ft 11 in to 6 ft 8 in, Morse Taper pedals for long-term spindle durability, and optional compatibility with the 4iiii crank arm powermeter and Echelon2 digital console.
Size & Space Requirements
-
Dimensions (W × L × H): 51 × 110 × 127 cm (20 × 43.5 × 50 inches)
-
Maximum Product Length: 127 cm (50 inches) at full slider extension
-
Product Weight: 53 kg (115 lbs)
-
Shipping Weight: 59 kg (129 lbs)
-
Drive System: Carbon Blue durable toothed belt drivetrain
-
Resistance Mechanism: Low-maintenance magnetic resistance brake
-
Pedal Type: Morse Taper spindle design for high reliability
-
Frame Construction: Corrosion-resistant e-coated and powder-coated steel
-
User Height Range: 150–203 cm (4 ft 11 in to 6 ft 8 in)
-
Optional Tech Add-ons: 4iiii strain-gauge crank powermeter, Echelon2 performance console
The bike’s compact 20-by-43.5-inch footprint allows studios to maximize class capacity while maintaining adequate side-to-side elbow room. Ensure sufficient floor clearance around the frame for mounting, dismounting, and standing climbs, as well as easy access to the integrated rear stretch pads.
Care & Maintenance
- Wipe down the handlebars, saddle, adjustment sliders, and flywheel housing after every class with a non-corrosive disinfectant spray or wipe.
- Inspect the magnetic brake assembly periodically for alignment and clean away any dust accumulation.
- Check and tighten the Morse Taper pedals, pop-pins, and saddle clamp hardware on a regular schedule.
- Ensure the Carbon Blue belt stays clean and free of foreign debris; no lubrication is required.
- Inspect the e-coated frame and base stabilizer feet for sweat pooling or floor-contact wear.
- Follow the manufacturer's preventative maintenance guidelines for fleet bikes in commercial cycling studios.
Safety & Usage Tips
-
Securely tighten all seat and handlebar adjustment levers before mounting the bike.
-
Adjust saddle height so the knee maintains a slight 25-to-35-degree bend at the bottom of the pedal stroke.
-
Ensure cycling shoes are firmly clipped into the pedals or that toe cages are strapped tight prior to high-cadence efforts.
-
Use the emergency stop knob to halt the fixed-gear flywheel gradually; never attempt to dismount while pedals are spinning.
-
Utilize the built-in frame stretch pads only when the flywheel is completely stationary.
-
Verify that leveling feet are properly adjusted to eliminate rock or wobble on studio floors.
