Schwinn Aetherion+ Indoor Studio Bike (Ion Power Meter)

Name: Schwinn Aetherion+ Indoor Studio Bike (Ion Power Meter)
Brand: Schwinn
Price: 3849.0 GBP
Availability: InStock

Integrated Wired Ion Power MeterStandard Included Zone ConsoleAetherion+ S & R Drivetrains6-Magnet Non-Contact Resistance2 Years Full Warranty

by Schwinn

Save 10%

£4,300.00

£3,849.00

Drive Option

Smooth

Road

Availability: Only 5 left!

Quantity

🚚 Free Shipping on all orders

🚚

Free Delivery

On all UK orders

🏆

Premium Quality

A-grade equipment

🔄

Easy Returns

30-day hassle-free returns

💬

Expert Support

Dedicated customer service

Wired Ion Power Meter Integration

Equipped with an integrated wired Ion Power Meter delivering consistent, interference-free power data for data-driven studio programming and member progress tracking.

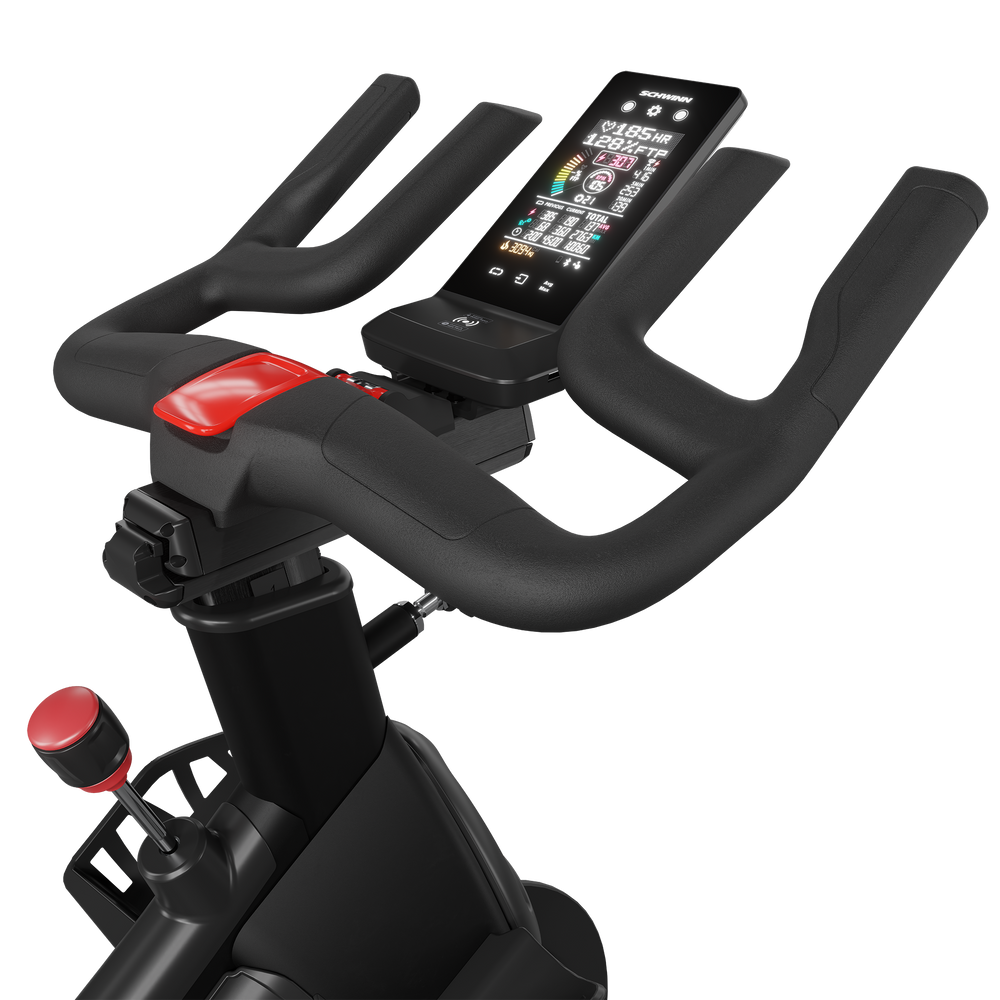

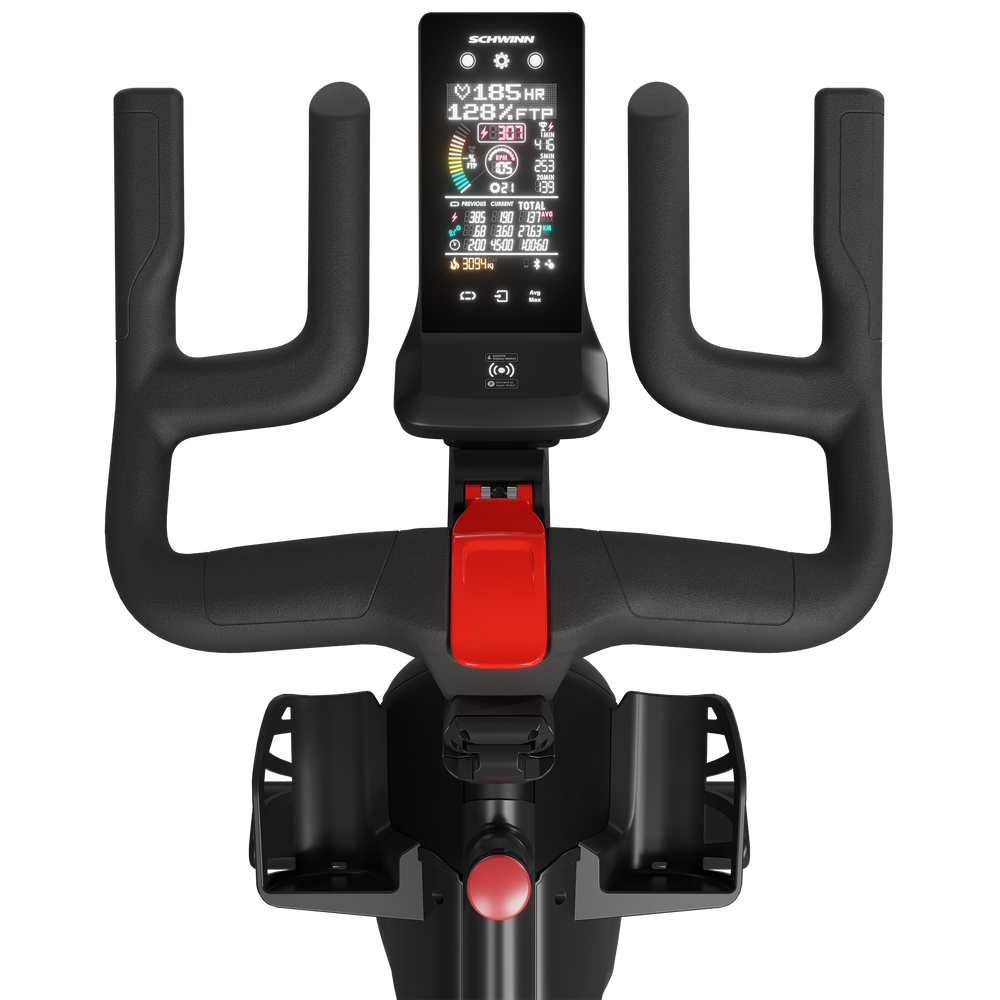

Included Zone Console

Comes standard with the Zone Console to display direct power, cadence, resistance, and heart rate metrics for competitive studio riding.

Dual Drivetrain Options (Poly-V vs Carbon Belt)

Offers two performance drivetrains: Aetherion+ S featuring a Smooth Poly-V belt (SKU: 9-7602) or Aetherion+ R featuring a Toothed Carbon Belt (SKU: 9-7612).

6-Magnet Non-Contact Resistance

Features a 6-magnet non-contact magnetic resistance system and thin-profile aluminum flywheel for ultra-smooth, silent, and wear-free braking.

Schwinn Aetherion+ Indoor Studio Bike (Ion Power Meter) infographic

Product Description

The Schwinn Aetherion+ Indoor Studio Bike (Ion Power Meter) is a commercial indoor cycle designed for boutique fitness studios, elite performance centers, and multi-use athletic facilities looking to offer a data-driven, authentic cycling experience. Engineered for versatility, the Aetherion+ is available with either a smooth Poly-V belt (Aetherion+ S) for whisper-quiet rhythm rides or a toothed carbon belt (Aetherion+ R) for outdoor road-feel precision.

Built on a durable powder-coated steel chassis in Matte Black, the bike incorporates a 6-magnet non-contact magnetic resistance system and a thin-profile aluminum flywheel to deliver consistent, frictionless deceleration.

Ergonomics are prioritized through a universal multi-position handlebar, dedicated AC saddle, lever-controlled fore/aft micro-adjustments, pop-pin height settings, a road-optimized 168 mm Q-factor, and heavy-duty Morse Taper Double Link pedals equipped with both SPD clips and athletic shoe cages.

Size & Space Requirements

Product Footprint (L × W): 147 × 61 cm (58 × 24 inches)
Maximum Product Length: 147 cm (58 inches)
Product Weight: 69.1 kg (149.7 lbs)
Shipping Weight: 76 kg (168 lbs)
Shipping Dimensions (L × W × H): 113.8 × 29.2 × 96 cm (44.8 × 11.5 × 37.8 inches)
Maximum User Weight: 159 kg (350 lbs)
User Height Range: 150–203 cm (4 ft 11 in to 6 ft 8 in)
Q-Factor: 168 mm
Frame Material & Finish: Heavy-duty steel with a powder-coated finish (Standard: Matte Black 60)
Drive System: Smooth Poly-V Belt (Aetherion+ S, 9-7602) or Toothed Carbon Belt (Aetherion+ R, 9-7612)
Resistance Mechanism: 6-Magnet Non-Contact Magnetic Resistance
Flywheel: Precision thin-profile aluminum
Pedals: Morse Taper Double Link (SPD clip and athletic shoe cage)
Adjustment System: Fore/aft lever micro-adjustments; pop-pin vertical height adjustments
Console & Technology: Zone Console included; integrated Ion Power Meter

Care & Maintenance

To protect sensitive electronics and preserve the frame finish in high-turnover studio environments:
Wipe down the handlebars, saddle, micro-adjustment levers, and console after every session using non-abrasive, studio-safe disinfectant wipes.
Inspect the 6-magnet non-contact brake assembly regularly to ensure it is free from dust, towel fibers, and foreign buildup.
Periodically check the torque on the Morse Taper pedals, bottom bracket assembly, and stabilizer bolts.
Keep the thin-profile aluminum flywheel clean and inspect belt alignment according to regular service cycles.
Zero-offset and calibrate the Ion Power Meter periodically following manufacturer protocols for reliable wattage data.
Ensure leveling feet remain properly adjusted and free from sweat accumulation beneath the base.

Safety & Usage Tips

Verify that both the saddle and handlebar pop-pins and micro-adjustment locking levers are firmly secured prior to riding.
Confirm shoe cleats are firmly clipped into the SPD mechanisms or that cage straps are securely tightened over footwear.
Use the direct-action resistance knob to stop the flywheel completely before attempting to step down from the bike.
Set seat height so your knee maintains a 25-to-35-degree angle of flexion at the lowest point of the pedal stroke.
Adjust the base levelers to eliminate any frame rocking on uneven studio flooring before starting high-cadence sprint blocks.
Refer to the manufacturer guidelines for proper battery management and firmware updates for the Ion Power Meter and Zone Console.

Specifications

drivetrain_options	Aetherion+ S: Smooth Poly-V (SKU: 9-7602) \| Aetherion+ R: Toothed Carbon Belt (SKU: 9-7612)
power_measurement	Integrated Wired Ion Power Meter
included_console	Zone Console
resistance_system	6-Magnet Non-Contact Magnetic Resistance
flywheel	Aluminum, thin profile
frame_material	Powder-Coated Steel Frame
frame_color	Matte Black (60)
q_factor	168 mm
pedals	Morse Taper Double Link - SPD and athletic shoe cage
saddle	AC Saddle
adjustments	Lever micro-adjustment (fore/aft); Pop-Pin (height)
user_height_range	4 ft 11 in to 6 ft 8 in (150-203 cm)
maximum_user_weight	350 lb (159 kg)
product_weight	149.7 lb (69.1 kg)
dimensions	58 in L x 24 in W (147 cm x 61 cm)

Warranty

Structural Frame: Limited 10-year warranty (not including coatings). Carbon / Poly-V Belts: 10-year warranty. Components & Accessories: 2 years parts and 2 years labour (includes Ion Power Meter, console, and pedals).

Shipping & Returns Info

Free Delivery: We offer Free Standard Shipping on all orders across England, Scotland, and Wales.
Timeline: Orders are processed on business days (Mon–Fri) and typically dispatched within 2 working days. Delivery takes an additional 2 to 4 business days after dispatch, so please allow a total of 4-6 working days for arrival.
Pallet Delivery (Curbside): Large items like reformers arrive via a dedicated pallet service to ensure safety. Delivery is curbside only, so please make sure you have help available to move the gear indoors.
Narrow Roads / Access: If your property is on a narrow road or has restricted truck access, please inform our team immediately so we can coordinate a smooth delivery.
30-Day Returns: If you change your mind, you can return any item in its original, unused condition and packaging within 30 days of delivery. Just reach out to our support team, and we’ll guide you through the return process and collection details.

Why Buy From Us

At Novara Reformers, we believe premium Pilates equipment should come with a premium experience. Here's what you can expect:

Free UK shipping on every order, no minimum spend
30-day hassle-free returns on all unused items
Fast refunds processed within 5–10 working days
Faulty item? We'll replace or refund it — no questions asked
Your statutory rights are fully protected under the Consumer Rights Act 2015

Best For

performance-driven cycling studios, competitive group cycle facilities, data-focused fitness centers, and elite athletic hubs

Ideal Usage

data-backed group spin classes, power-zone interval training, leaderboard performance tracking, and high-intensity studio workouts

Recommended Customer

performance gym owners, cycling studio operators, power-training spin instructors, and competitive cyclists

Daily Usage

engineered for continuous heavy-duty commercial studio usage

Performance Level

commercial-grade performance studio bike standard

Space Required

Assembled Footprint (58 in L x 24 in W / 147 cm x 61 cm)

Key Differentiator

Integrated wired Ion Power Meter for interference-free power readings, bundled Zone Console, and dual drive options (Aetherion+ S Smooth Poly-V or Aetherion+ R Toothed Carbon Belt)
